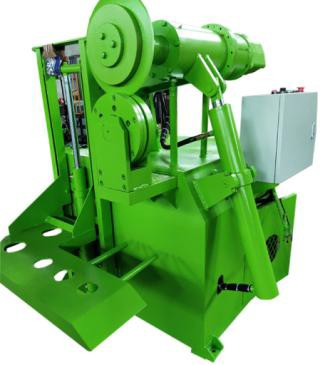

TGFQ 1200-Ⅱ 輪胎胎冠分切機Tread Cutter
主要用途Main application

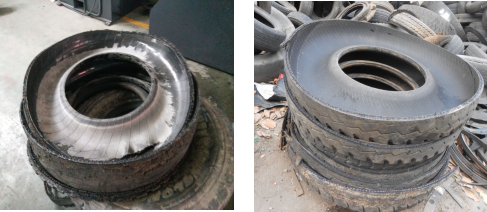

該設備是將輪胎一分為二進行分切，方便后續切條處理及遠程裝車運輸增加裝載量。
This equipment is to cut the tire tread into 2 pcs for the following strip cutter and transport
設備特點Equipment features
采用特種合金材料制作刀具,維護成本低,維護簡單方便。Special alloy blades,low cost and easily simple for maintenance
液壓系統與機器一體式設計,處理量大,功耗小,運輸和安裝方便。
Hydraulic integrated with equipment body,high capacity with low power consumption and easily transported and installed.
主要技術參數Main technical spec
設備型號Equipment model | TPGQ1200-Ⅱ |
電機功率Motor power（Kw） |
7.5 |
進料尺寸Input material size（mm） | ≤1200 |
出料尺寸Output material size（mm） | 胎頂一分為二 Double pcs cutted tread |
處理能力Capacity（條Pcs/h） |
60-80 |
主軸轉速Main shaft rotatory speed（m/Min） | 70 |
尺 寸 size（L×W×Hmm） | 1500×950×1650 |
設備重量Equipment weight（Kg） |
1500 |
如有需要切割直徑1200-1600mm 輪胎,可以根據需要為你定制升級款 If you want to cut the tire in Φ 1200-1600mm,we can customize the upgraded one for you | |
