主要用途Main application
三次元振動篩是一種高精度細粉篩分機械。

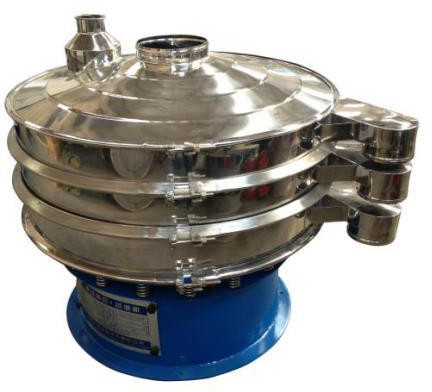

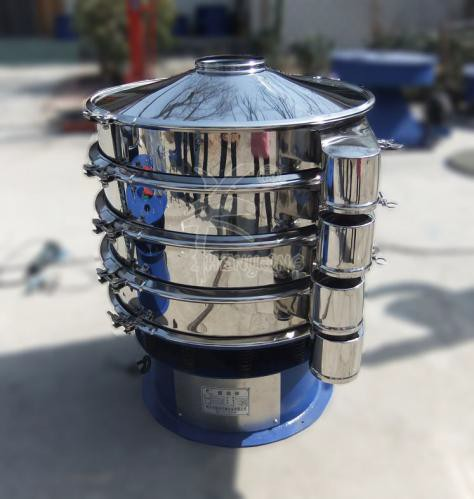

The 3 layer vibrating screen is a high precision screening machine.
設備特點Equipment features
效率高、設計精巧耐用，任何粉類、粘液均可篩分。
High efficiency, exquisite and durable design, any powder and mucilage can be separate.
體積小，不占空間,移動方便,換網容易、操作簡單。
Small volume, little floor space, convenient moving, easy screen size changing and simple operation.
雜質、粗料自動排出，可以連續作業。

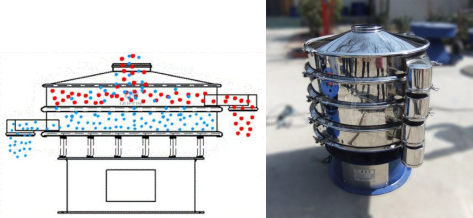

The impurity and coarse material can be exhausted automatically in continuous operation.
主要技術參數Main technical spec
Model 設備型號 | ZDS800 | ZDS1000 | ZDS1200 | ZDS1500 |
電機功率 Motor power(Kw) | 0.75 | 1.1 | 1.1 | 1.5 |
有效篩分面積 Effective screening area | 0.43 | 0.66 | 1.0 | 1.58 |
有效篩分直徑 Effective screening size（mm） | Φ740 | Φ900 | Φ1100 | Φ1400 |
生產能力Capacity (Kg/h) | 50-550 | 100-1000 | 150-2000 | 20-2500 |
篩網規格Screen size（Mesh） | （按需求配置）5-60（Depend on requirement ） | |||
設備重量Equipment weight(Kg) | 250 | 290 | 320 | 450 |
據您的需求，設計不同層數和不同尺寸篩網 We can design the different layer screen and different screen size as your requirement | ||||
